Product Description

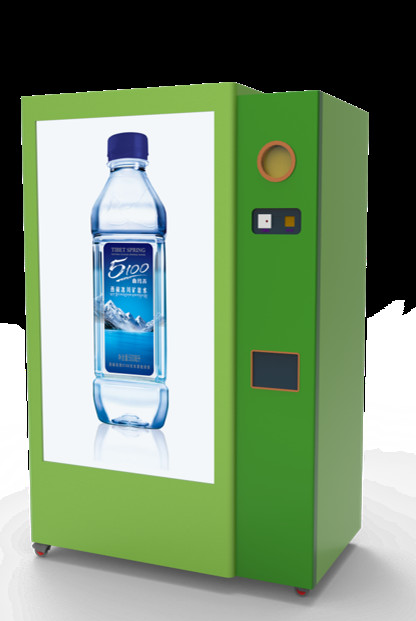

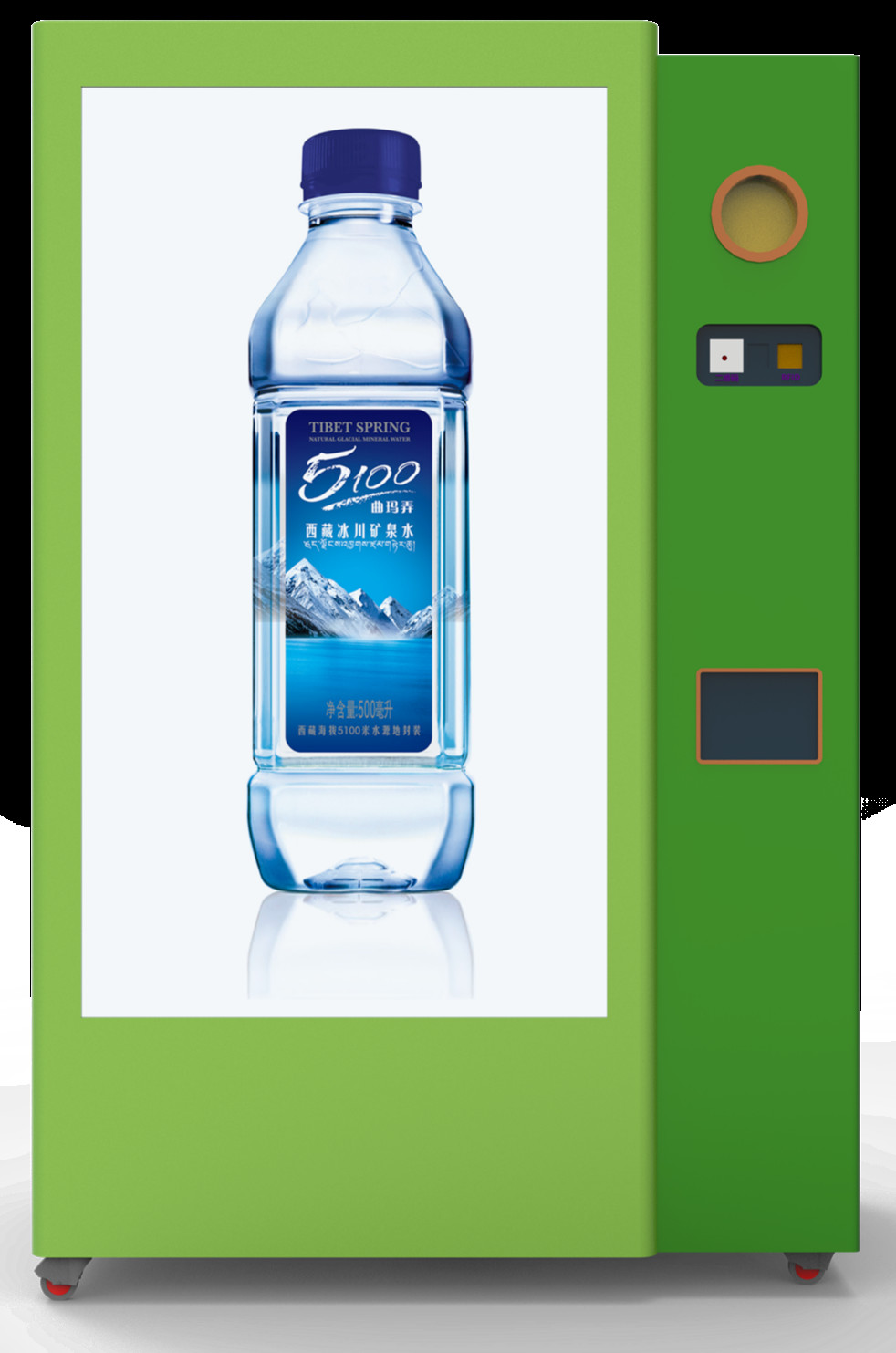

Hospital Bottle Recycling Vending Machine with compressor CE approval
Brief Introduction :
RVM-3109 Smart Reverse Vending Machine (RVM) ideal for receiving low to medium volumes of one-way and refillable containers of plastic bottle, metal can,glass bottle, equipped the compactor module to improve the capacity of storage up to 1200pcs plastic bottle, 800pcs metal can, soft drop protect systems , 100pcs glass bottle and container segregated storaged.
RVM-3109 RVM compatible with vary reward option such as coupon, digital deposit, redeem gift, donation etc. The built in printing module support print coupon,receipts and other vouchers.
50" touch screen, a good way to interactive, attract traffic, promote brand, increase income. with software integrated, user start the recycle by APP or scan the QR code. it suitable for hospital, stadium, GYM, Library, Museum, bus station, airport, train station,beauty salon, auto service center, car dealer shop, downtown etc.
Parameters:
| Model# |
RVM-3109 |
Description: |
Smart RVM |
| Size (mm) |
1950H*1100L*850D |
2 container
3 container
|
Plastic bottle, metal can,
glass bottle
|
| Compactor |
yes |
Sorted |
yes |
|
Special
features
|
1. UV sterilization
2. with 4 protections
3. Over flow alarms
4. Abnormal alarms
|
Storage capacity: |
1200pcs plastic bottle
800pcs metal cans
100pcs glass bottle
|
| Voltage/ Frequency |
AC110V, 230v, 50/60HZ
0.5A /10A
|
Output: |
Max: 350W
Idle status: 150w
|
| recognition system |
Bar code matching
Configuration scanner
Weight sensor
|
Reward |
Coupon
Donation
Redeem gift
|
| Operated |
APP, QR code |
Touch screen |
50”,
2pcs* 50inch demo screen
|
| Process speed |
40pcs |
Working Temp
Humidity
Noise
|
-10℃ to +45℃
<95%,
<60db
|
| Vend solution |
Spring rods |
Storage capacity |
3-4 SKU,20-80pcs |
| Suitable for |
Semi-Outdoor |
Network Solution |
LAN,GPRS, 3G, 4G |
| Operate software |
a. Standard in English
b. Customized
c. Manual operate
|
Remote control software |
a. Standard
b. Customized
c. Standalone
|
| G.W: |
300KGS |
Certification |
CE, ROHS |
Quick Detail:
1. User Screen: 50inch
2. Material types: plastic PET bottle, metal can, glass bottle
3. with compactor & soft drop protect system
4. sorte storage
5. Productivity: 40 pcs per min
6. Storage Capacity up to 1200pcs of plastic bottle, 800pcs metal can (compacted), 100pcs glass bottle
7. Reward systems: Digital Deposit, Coupon, Donation, Redeem gift
8. Automation: Barcode, material and weight sensors
9. Container size:150ml - Max.2.5litres
10. Over flow alarms
11. anti-clamping hand protection (door)
12. Non-conforming image identification Reject
13. No-conforming weight identification Reject.
14. 4 protections-OVP,SCP, RVP, RCD
15. IP54 waterproof
16. Support for multiple reward systems
17. Support software integarted
More Designs
Building Circular Economy, Improve the Recycle Industry Chain
Management Platform
a . Introduction and samples
b. Management Center
Circle 8000 Remote management Systems
