Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | EEnjoy |
| Certification: | CE, ROHS |
| Model Number: | RVM-3705 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 5pcs |
| Price: | to be negociated |
| Packaging Details: | wooden case |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, West Union |
| Supply Ability: | 300PCS-500PCS / Month |
|
Detail Information |
|||
| Name: | Smart Recycling Machines In 20' Mobile Container | Key Words: | Mobile Container Type Smart Recycling Machines |
|---|---|---|---|
| Container: | Plastic Bottle, Aluminum Can, Glass Bottle | Compactor: | Yes |
| Soft Drop Protect System: | Yes | Segregated: | Yes |
| Productivity: | 200pcs Per Min | Reward Option: | Coupon,Deposit,Redeem Gift |
| Automation: | Barcode | Operation: | APP , QR Code |
| High Light: | Modular customized Smart Reverse Vending Machine,Barcode PET bottle collection machine,Modular customized PET bottle collection machine |
||
Product Description
Modular customized containerized recycling and sorting equipme PET Bottles/ Can/ Glass bottle
Brief Introduction :

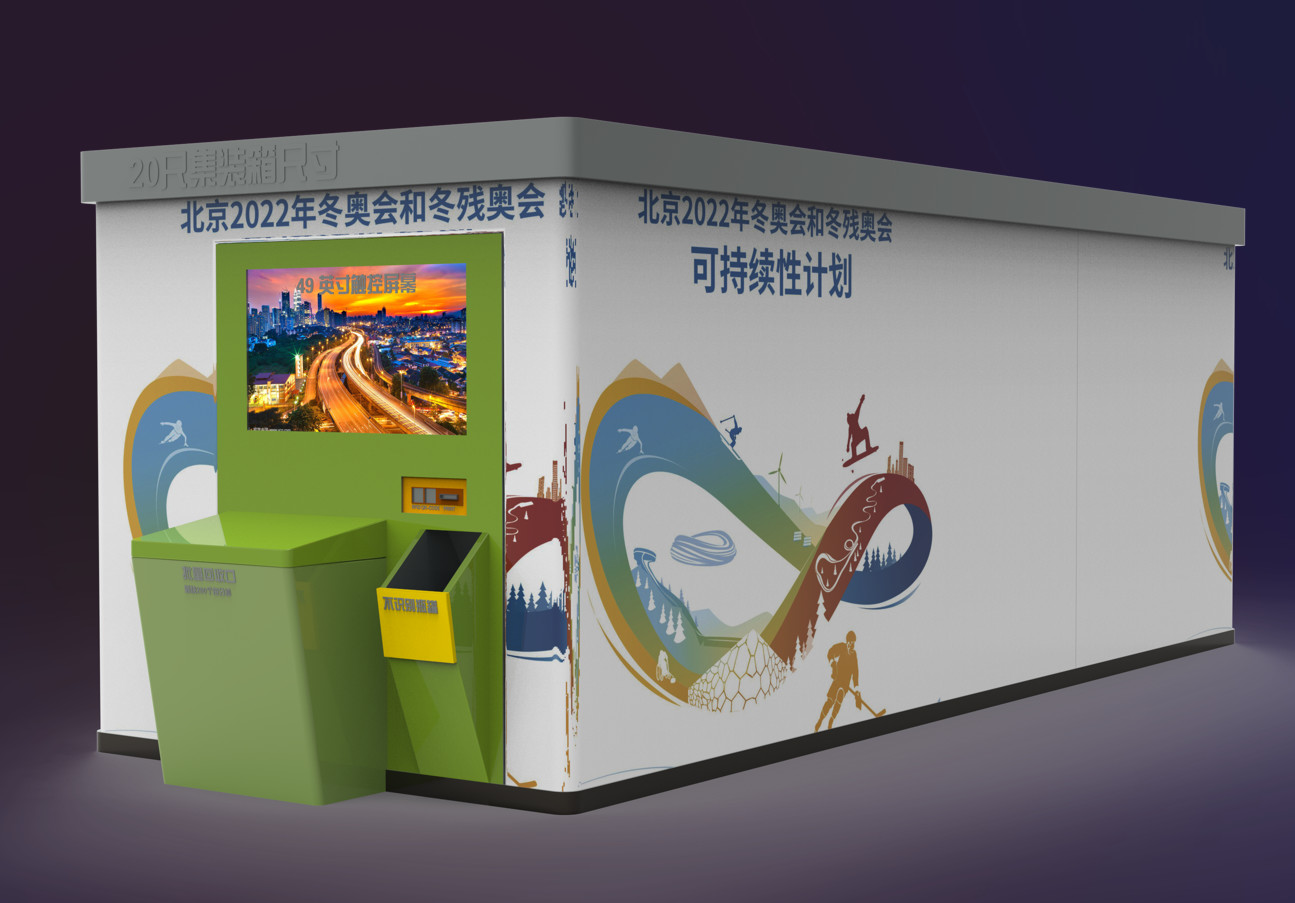

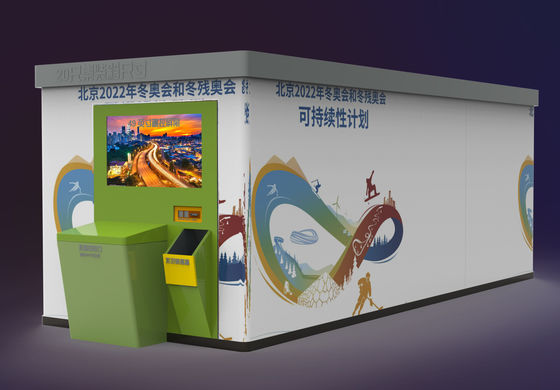

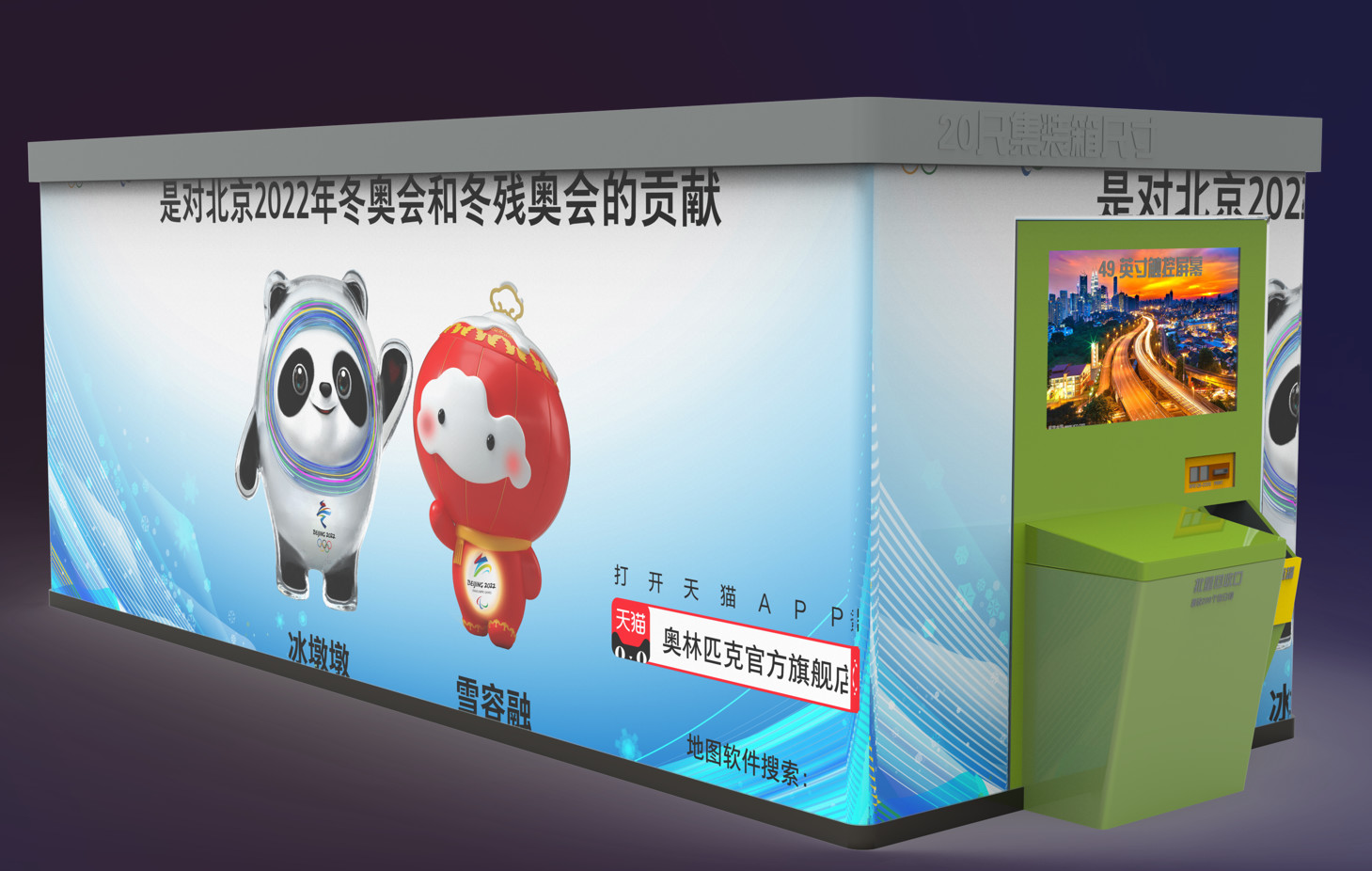

RVM-3705 offer customized recycling & sorting equipment full footprint in 20' container, moveable.
Ideal for recycle plastic bottle, metal can and glass bottle, integrated automation systems process speed up to 220pcs/ min.
Equipped compactor module to large the storage capacity, soft drop protect systems for glass bottle, also can meet the requirement without compactor .
RVM-3705 compatible vary reward option in coupon, digital deposit, 42" touch screen, user start recycle via APP login or Scan the QR code.
We customized the interactive software and reward systems .
Parameters:
| Model# | RVM-3705 | Description: | Super Recycling Line |
| Size (mm) |
Operation RVM: 2000(H) x 1300(W) x 1050 (D) Process Line: 2400H*2400(W)*5956 (D) |
Container |
Plastic bottle, metal can, glass bottle |
| Compactor | Yes ( option: NO ) | Sorted | yes |
| Glass bottle | Soft drop systems | Process speed | 200pcs per min |
| Dis-assemble | option | Recycle per day | Up to 50,000 pcs |
| Voltage/ Frequency |
AC110V, 230v, 50/60HZ 0.5A /10A |
Output: |
Max: 350W Idle status: 150w |
| recognition system | Bar code matching | Reward |
Coupon Digital Deposit |
| Operated | APP, QR code | Touch screen | 42” |
| Suitable for |
Shopping mall Super market Community Recycling center |
Working Temp Humidity Noise |
-10℃ to +45℃ <95%, <60db |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software |
a.Standard in English
b.Customized
c.Manual operate
|
Remote control software |
a. Standard b. Customized c. Standalone |
|
Special features |
1. UV sterilization 2. RVM with 4 protections 3. Over flow alarms |
Software integrated | Support |
Quick Detail:
1. User Screen: 42"
2. Material types: plastic PET bottle ,metal can, glass bottle
3. compactor for plastic bottle, metal can
4. soft drop system for glass bottle
5. sorte
6. Productivity: 220 pcs per min
7. modular
8. Reward systems: Digital Deposit, Coupon
9. Automation: Barcode
10. Container size:150ml - Max.2.5litres
11. anti-clamping hand protection (door)
12. 4 protections-OVP,SCP, RVP, RCD
13. support oftware integrated
More Designs
Management Platform
Remote control management software collect and transfer the opeate reycling data, reward data, data analysis, transportation route optimization & etc to Icould server. with over flow alarms, abnormal alarms, remote settings etc
a . Introduction and samples
b. Management Center
Circle 8000 Remote Management Software
